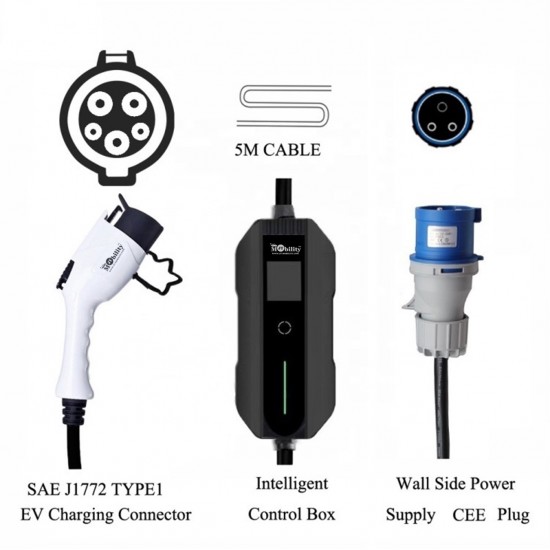

Portable Electric Car Charger Type 1 SAE J1772 – CEE Plug, Single Phase, 32A, 7.3kW
JT Mobility Type 1 SAE J1772 Smart portable chargers allow you to charge on the go from all types of sockets, from the usual socket to the industrial CEE-32A. It has the new generation practical display that shows the charging current, voltage at each phase, power, and temperature. All JT Mobility portable chargers allow you to set the charging current according to the circuit breaker and ensure that the circuit breaker will not trip during charging. All portable chargers are equipped with protective elements to ensure the complete safety of the car and the charger.
Portable Mode 2 charging cable for connection EV to an ordinary domestic socket. Drivers can charge electric cars from a domestic socket in an emergency. Communication between vehicle and charging port is provided via a box connected between the vehicle plug and connector plug called ICCB (In-Cable Control Box).
Customers could adjust different current as their request. Also, the charger which equipped the adaptor could automatically identify different plug types and control the current upper limit to keep safe.
Full Link Temperature Monitoring System
JT Mobility original “full link” temperature control system can protect the temperature of 75 ̊ and cut off the current for 0.2S when temperature over 75 ̊.
Automatically Intelligent Repair
The smart chip is equipped to automatically repair common charging errors. It could also restart the power to protect the device from stopping charging errors. It could also restart the power to protect the device from stopping charge caused by voltage fluctuation.
IP66 Rolling-resistance System
Rugged shell which could resist the rolling and crash of the car. IP66 ensure the perfect work outdoors in any environment including rain and snow.
Real-time monitor is equipped to detect the temperature of the car-end and the wall-end plugs. Once the temperature is detected above 80 ̊ C, the current will be cut-off immediately. When the temperature returns below 75 ̊ C will resume off.
Accurate monitoring of PWM signal changes, Effective repair of capacitor units, Maintenance of battery life.
Fully compatible with all EV in the market.
Molded Plug with Temperature Sensor
IP 66 Rated
Non-Flammable Strong Polyamide Material, More Environmentally Friendly and Halogen Free
Recognition of Dangerous Voltage on the Protective Conductor
Protective Conductor Monitoring (PCM)
Power Failure Monitoring
Integrated Vehicle Communication Module (PWM)
|Approx. Diameter Cable (mm)||15.0 ± 0.50|
|Cable Length||5 Meter|
|Cable Nominal Conductor Size (Sq. mm)||3 Core x 6.0 Sq. mm 1 Core x 0.75 Sq. mm|
|Cable Outer Sheathing||Thermoplastic polyurethane (TPU)|
|Contact Pin||Copper Alloy, Silver or Nickel Plating|
|Contact Resistance||0.5 megohm MAX|
|Flame Retardant Grade||UL94 V-0|
|IC-CPD Enclosure Material||ABS|
|IC-CPD LCD Display||YES|
|IC-CPD Operating Voltage||100-250V|
|IC-CPD Protection Degree||IP 66|
|IC-CPD Rated Current (Max)||32A|
|IC-CPD Standard||IEC 62752|
|Impact Insertion Force:||>300N|
|No Of Phase||Single|
|Operating Temperature||-30C to +65C|
|Plug Type||Type-1 Female|
|Protection Degree||IP55 - Mated|
|Sealing gasket||Rubber or silicon rubber|
|Standard||SAE J1772 Type 1|
|Supply Connector||CEE – 32Amp|
|Used at||Vehicle Side|
