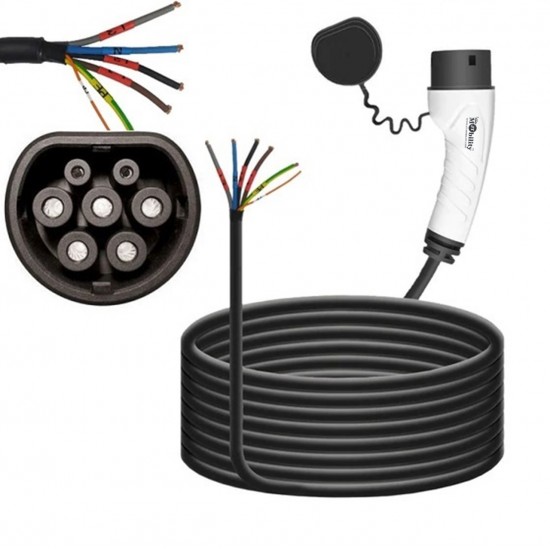

Mode 3 Tethered Charging Cable Type 2 IEC 62196-2 Female Three Phase 32 Amp 22Kw 5 Meter
JT Mobility 22kW, Three Phase 32A Type 2 tethered charging cable is designed for charging in mode 3, it is suitable for connection and charging from all private and public AC stations. The connector has an ergonomic shape, which ensures easy and comfortable handling and connection. When the cable is connected, it is protected against the ingress of particles and water. The protective cover has a degree of protection IP55 and protects against ingress of dust. This open-end cable replacement is to be integrated to the charging station. You can charge your EV that has Type 2 port. The product has a nice appearance, a hand-held ergonomic design and is easy to plug.
Conform to the provisions and requirements of 62196-2
Adopt riveting pressing process, beautiful appearance, Hand-held design in line with ergonomic principles, convenient plug.
Reliable materials, flame retardant, pressure resistance, abrasion resistance, impact resistance and oil resistance.
Excellent protection performance, IP55 protection level of the plug (working state) high security.
Female plugs meet 62196-2:2016 sheet 2-iie and Male plug meet IEC 62196-2:2016 sheet 2-iib standard.
Universally compatible, high-quality Type 2 electric car plugs designed for 10,000+ charging cycles
Stronger and Anti-Aging
More Environmentally Friendly and Halogen Free
More Resistant to Bending and Longer Service Life
Self-Cleaning Function on Pins
Unique Integrated Design
Better Conductivity and Higher Energy Transmission
Copper Allow, Silver platted pins
|Cable Length||5 Meter|
|Contact Pin||Copper Alloy, Silver or Nickel Plating|
|Contact Resistance||0.5m ohm Max|
|Flame Retardant Grade||UL94 V-0|
|Impact Insertion Force||>300N|
|Insulation resistance||>1000Mohm (DC500V)|
|No Of Phase||Three|
|Nominal Conductor Size (Sq. mm)||5 Core x 6 Sq. mm 2 Core x 0.5 Sq. mm|
|Open End Thread||Charging Station|
|Operating temperature||-30C to +50C|
|Outer Sheathing||20.0 ± 0.50 mm|
|Overall Wrapping||Non-Woven Fabric, 25 % Overlap Min.|
|Plug Type||Type-2 Female|
|Protection Degree||IP55 (Working Condition)|
|Sealing gasket||Rubber or silicon rubber|
|Shell material||Thermoplastic ( Insulator inflammability UL94 VO)|
|Used at||Vehicle Side|
