Key Features

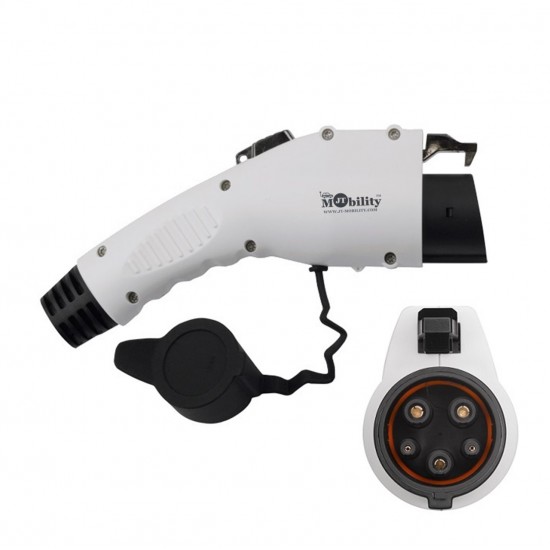

Type 1 SAE J1772 Female 16A Single Phase EV Plug or Connector Gun
EV plug j1772 meet UL 2251:2013, C22.2 NO 282-13 standards.
Plug in/pull out >10000 times.
Body is made with High Grade ABS and Thermoplastic Material
Rated with IP55 (working condition).
Anti-flaming, pressure-resistant, impact resistance material
Pin Material: Copper Alloy & Silver Plating
Better Conductivity and Higher Energy Transmission
Nice appearance, hand-held ergonomic design, easy plug
Assembly includes Pins, Cable Gland, Cable Clamp, Body, and Resistor
Data Sheet
- Model: JTEVG1PT1F-1
Type 1 SAE J1772 Female 16A Single Phase EV Plug or Connector Gun
JTEVG1PT1F-1
JT Mobility 16 Amp SAE J1772 Single Phase AC Type 1 Female electric car plug is designed to create a custom EV charger by selecting the desired cable length and connectors. Our This type1 connector meet the US standards. Plug connector comes as a component including the correct resistance required for assembly. This is not a complete charging cable; you use the components offered here to mount a complete charging cable type 1 for self-assembly.
| Specifications | |
| Coding | 680 Ω (between PE and CS) |
| Connection method | Crimp connection, cannot be disconnected |
| Contact Pin | Copper Alloy, Silver Plating |
| Contact Resistance | 0.5 megohm MAX |
| Insulation resistance | >1000MΩ (DC500V) |
| Material | Thermoplastic, Flame retardant grade UL94-0; |
| Plug Type | Female |
| Power Contact | 3 (L1, N, PE) |
| Signal Contact | 2 (CP, CS) |
| Temperature Resistance | <50K |
| Type of signal transmission | Pulse width modulation |
| Electrical Properties | |
| Charging current (Max) | 16A |
| Charging power | 3 kW |
| Operating Voltage | 110-250V AC , Single Phase |
| Rated current | 16A |
| Rated current Signal Contact | 2A |
| Rated voltage Signal Contact | 30 V AC |
| Type of charging current | AC Single-phase |
| Withstand Voltage | 2000V |
| Mechanical Properties | |
| Insertion force | < 75 N |
| Insertion/withdrawal cycles | > 10000 |
| Mechanical life | No-load plug in / plug out > 10000 times |
| Withdrawal force | < 75 N |
| Standard & Classifications | |
| ETIM | EC002897 |
| Standard | SAE J1772 Standard Type 1 |
| UNSPSC | 39121500 |
| Ambient Properties | |
| Operating temperature | -30C to +65C |
| Protection Degree | IP55 (Working Condition) |
