Description
JT Mobility 32A IEC 62196-2 Three Phase AC Type 2 Female electric car plug is designed to create a custom EV charger by selecting the desired cable length and connectors. Plug connector comes as a component including the correct resistance required for assembly. This is not a complete charging cable; you use the components offered here to mount a complete charging cable type 2 for self-assembly. This type 2 female plug with 32A cable is suitable for self-built Mode 2 & Mode 3 charging cables.
Data Sheet
- Model: JTEVG3PT2F-2

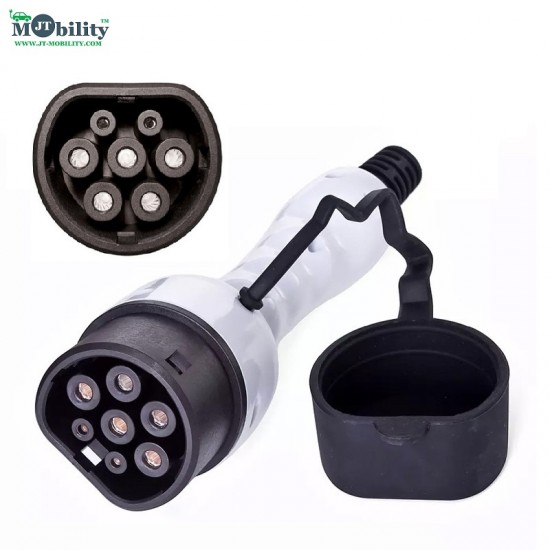

Type 2 IEC 62196-2 Female 32A Three Phase EV Plug or Connector Gun
JTEVG3PT2F-2
JT Mobility 32A IEC 62196-2 Three Phase AC Type 2 Female electric car plug is designed to create a custom EV charger by selecting the desired cable length and connectors. Plug connector comes as a component including the correct resistance required for assembly. This is not a complete charging cable; you use the components offered here to mount a complete charging cable type 2 for self-assembly. This type 2 female plug with 32A cable is suitable for self-built Mode 2 & Mode 3 charging cables.
Key Features
Plug in/pull out >10000 times
Reliability of materials, anti-flaming, pressure-resistant, impact resistance
Male plugs meet 62196-2:2016 sheet 2-iie and Male plug meet IEC 62196-2:2016 sheet 2-iib standard.
Comply to EN 62196-1: 2014; EN 62196-2:2017; TUV CE Standards.
Universally compatible, high-quality Type 2 electric car plugs designed for 10,000+ charging cycles
Type 2 connector with IP55 level (working condition).
| Specifications | |
| Contact Pin | Copper Alloy, Silver or Nickel Plating |
| Contact Resistance | 0.5m ohm Max |
| Flame Retardant Grade | UL94 V-0 |
| Impact Insertion Force | >300N |
| Insulation resistance | >1000Mohm (DC500V) |
| No Of Phase | Three |
| Operating temperature | -30C to +50C |
| Operation Voltage | 480V |
| Plug Type | Female |
| Plug Used At | EV Side |
| Protection Degree | IP55 (Working Condition) |
| Rated current | 32A |
| Sealing gasket | Rubber or silicon rubber |
| Shell material | Thermoplastic |
| Standard | IEC 62196-2 |
| Temperature Resistance | <50K |
